Description
Summary of Features

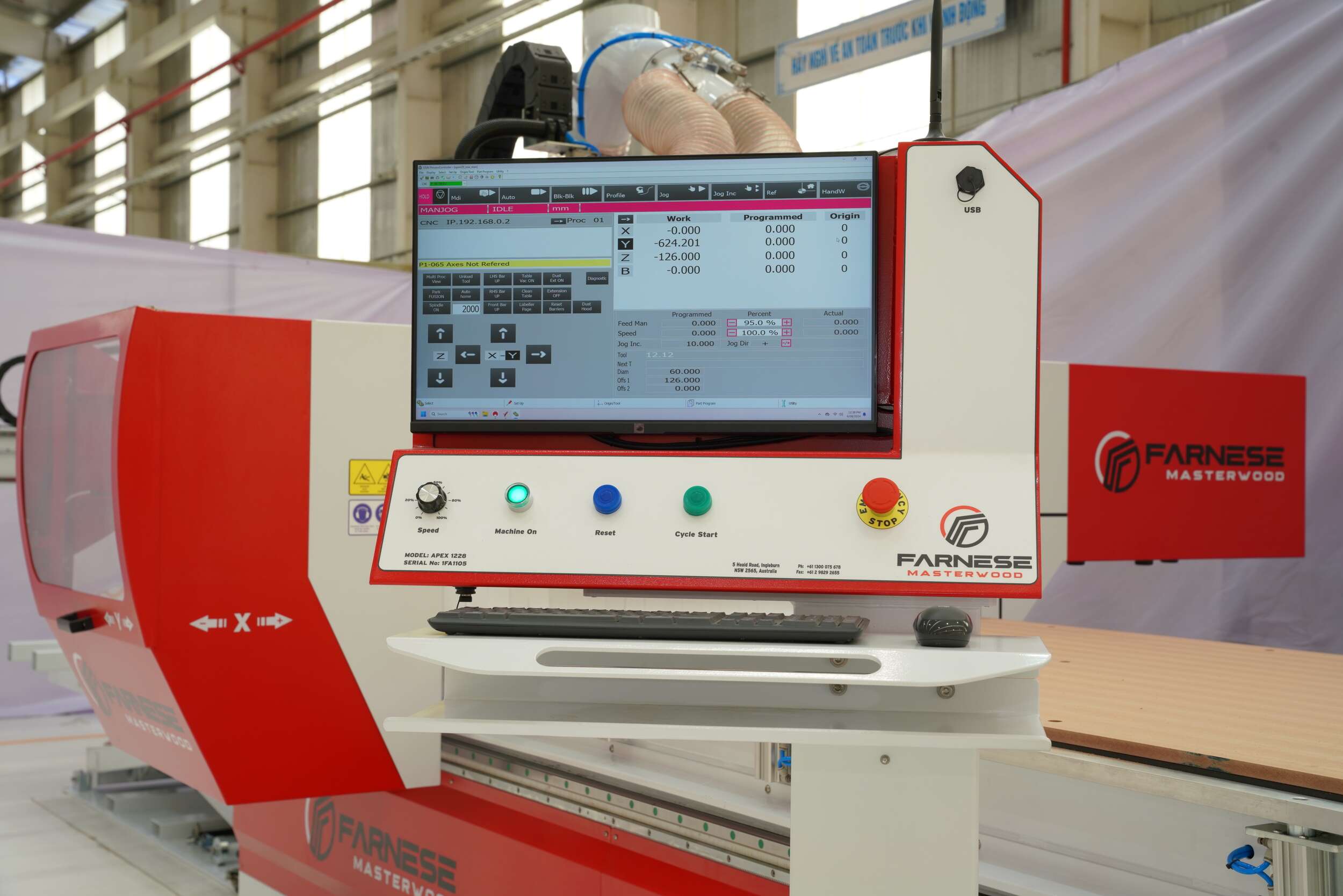

Osai CNC Control
High quality reliable Italian controller. Easy to customise interface and fitted
with internet remote assistance for ease of support.
Hiwin Slideways
High quality precision guides which give high rigidity, long longevity and
smooth motion in all axis
Vertical Router
Vertically mounted 9kW (larger on request) electro spindle, fan cooled,
24,000RPM max speed.
Boring Head
Vertical drilling head with 5+4 independent mandrels. 4 Independent
mandrels in the X axis and 5 in the Y axis.

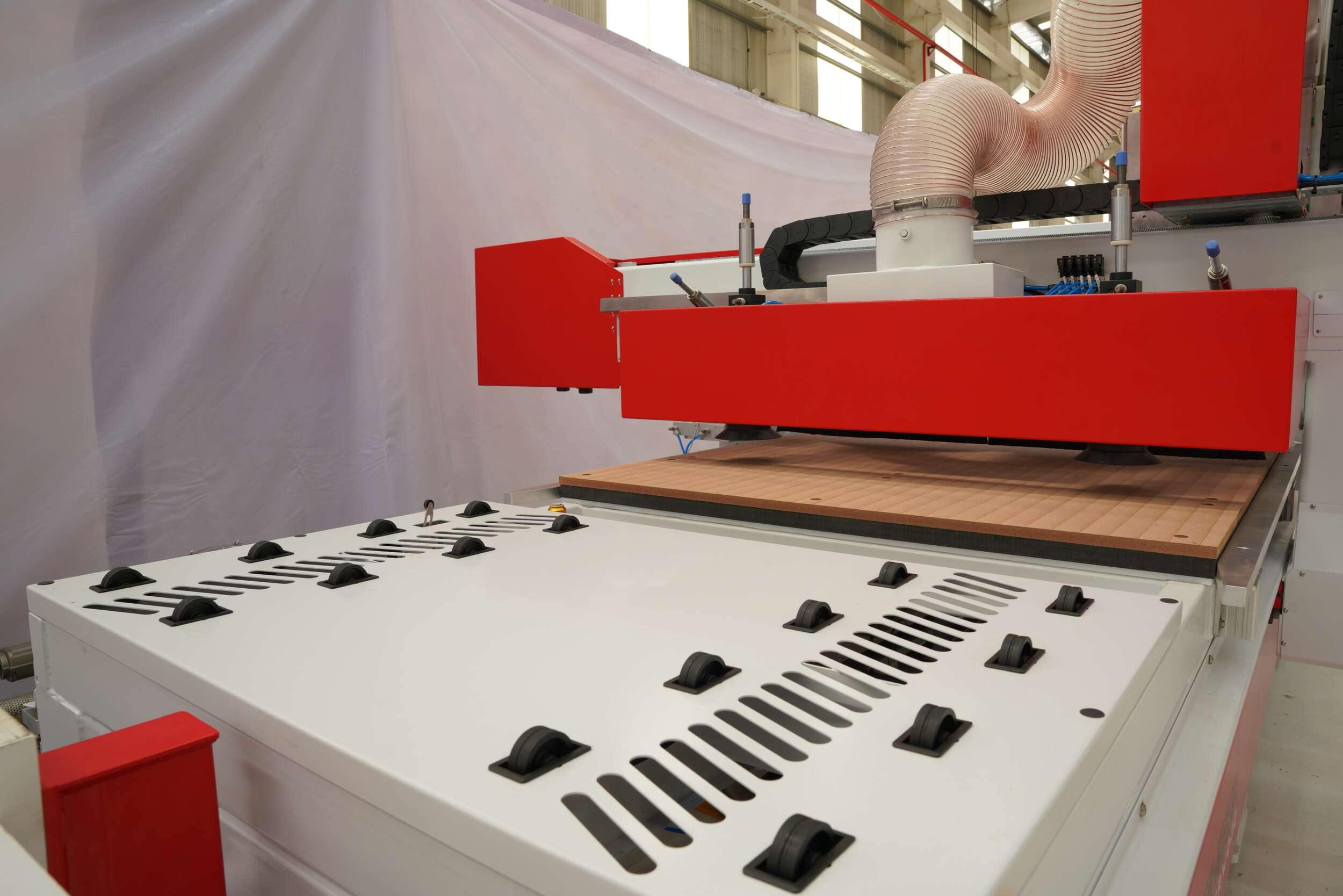

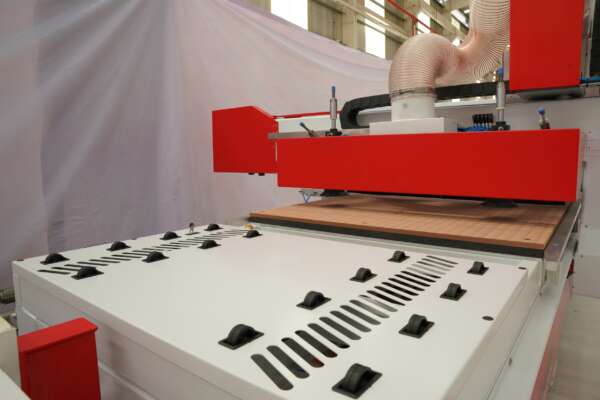

Matrix Table
Grooved multifunctional working table to hold both large and small work
pieces
High Precision Digital Drivers
High precision absolute encoder servo motors with high precision gearboxes
for high speed and positional precision.

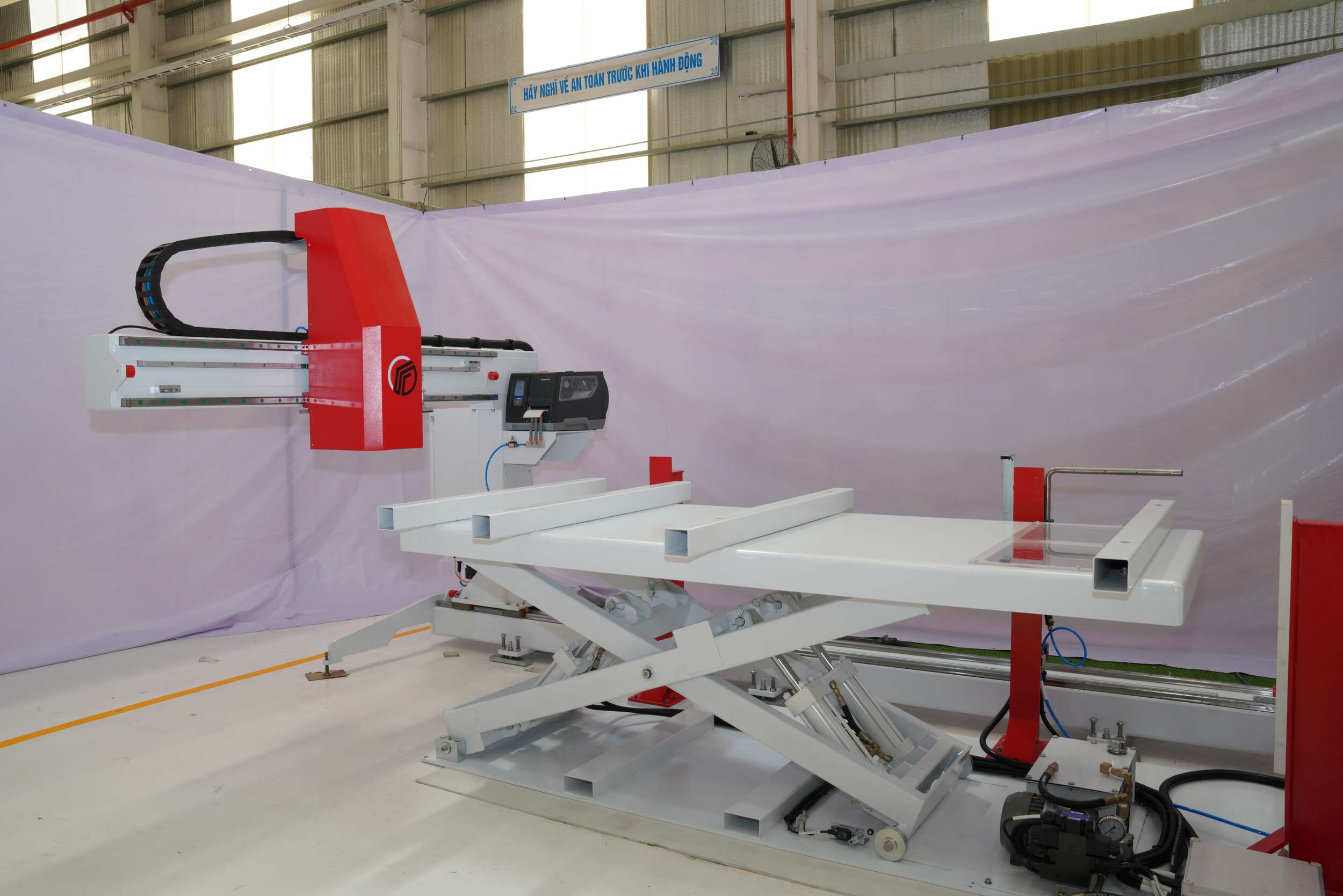

Pusher for Panels Unloading
Allows the machined pieces to be taken off the working table that will then be
cleaned by the suction device

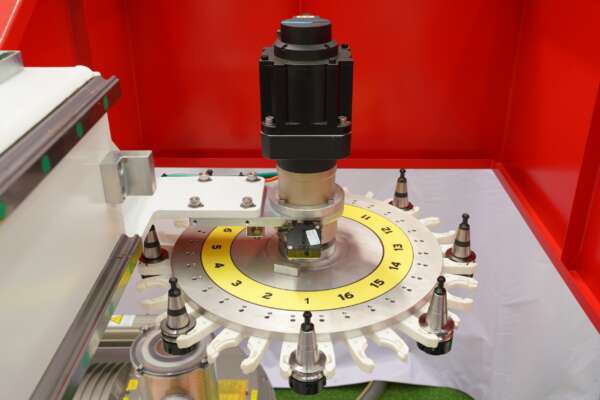

16 Position Rotary Magazine
Servo driven rotary tool magazine mounted on the bridge of the machine for
fast tool changes
