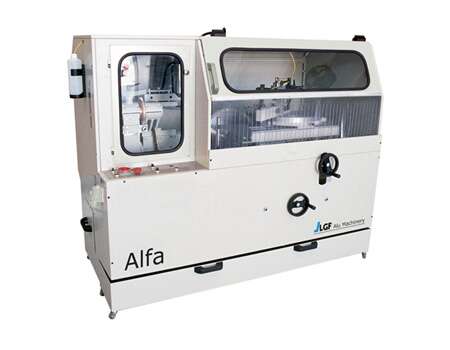

Description
Technical Data
Machine totally enclosed
Sliding of the sawing carriage by means of recirculating balls bearings on rectified and tempered guides
Cylinder stroke 700mm
Adjustable feeding of the sawing carriage 4-10 mt/min
Blades tilting range +/- 45° by means of hand wheel
Possibility to preform cuts at any intermediate degrees
Adjustable working bench in terms of height and depth by means of hand wheels
Tilting fence on the working bench at 45°/90°/-45°
Max. profile height 155mm
Max. profile width 250 mm
Max. depth of cut in horizontal 135 mm
Max. depth of cut in vertical 160 mm
2,2 Kw (3 HP) self braking motors – 2800 r.p.m.
Sawblade’s bore Ø 30 mm
Working pressure 7 bar
Overall dimensions: 110x215x176 cm
Weight: 650 kg
Standard Equipment
Nr. 1 TCT saw Blades Ø 450 mm
Nr. 1 TCT saw Blades Ø 400 mm
Pneumatic clamps
Automatic lubrification by means of nebulizer
Waste retrieval front tank on wheels
Nr. 2 waste retrieval tanks on the sides
Optional
Digital display (Nr 2 on sawblades tilting – Nr 1 on tilting fence)
