Description
Technical Data

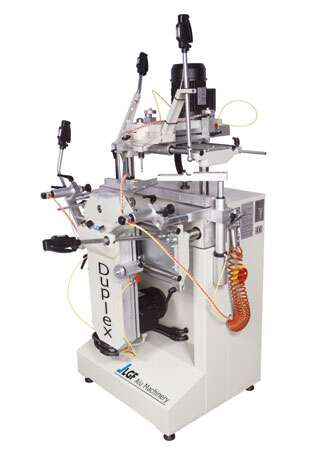

Particularly suitable for light alloy, PVC and stainless steel profiles
Machine equipped with two independent motors
Easy and fast settings
Possibility to work on 4 sides without moving the profile
1,1 Kw (1,5 HP) 3 phase motors- 2800 r.p.m.
Spindle revolution 14.000/min
Working pressure 7 bar
Overall dimensions 80x85x165 cm
Weight 150 kg
Working capacity
VERTICAL HEAD
Vertical stroke 110 mm
Longitudinal stroke 220 mm
Transversal stroke 115 mm
HORIZONTAL HEAD
Vertical stroke 115 mm
Longitudinal stroke 345 mm
Transversal stroke 200 mm
Standard Equipment
Nr 4 pneumatic copier pins with double diameter
Horizontal pneumatic clamps
Automatic lubrication by means of nebulizer
Nr 1 vertical router bit Ø8 mm
Nr 1 horizontal router bit Ø8 mm Nr 2 collets Ø8mm ERX 25/BDV 0023
Profile end stop
Nr 3 templates
Air filter
Air gun
Service spanners
