Description
Technical Data

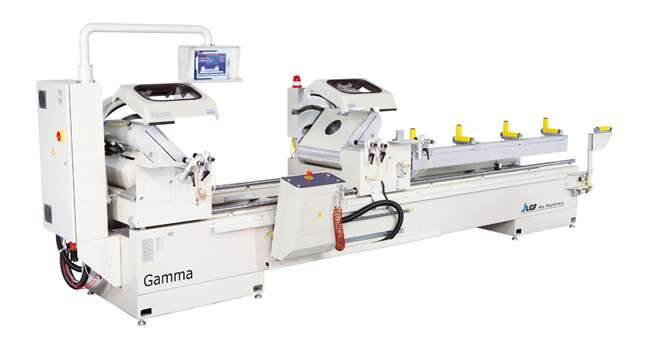

Machine equipped with electronic positioner, c/w 10″ color screen and touch screen system
USB port to store/upload of cutting lists
Full protection of the sawblades by means of safety hoods with automatic closing
Right head displacement by means of electronic positioner
Sliding of the moving head by means of recirculating ball bearings on rectified and tempered guides
Radial sliding of the sawing carriage
Pneumatic heads tilting at 90° a + 45°
Possibility to mount sawblades Ø 500 – 530 – 550 mm
2,2 Kw (3 Hp) 3 phase – 2800 r.p.m.
Sawblade shaft Ø 30 mm
Cutting lengths 4000/5000/6000 mm
Working pressure 7 bar
Overall dimensions 533-633-733x139x196 cm
Weight 1200 – 1350 – 1500 Kg
Standard Equipment
Nr 2 TCT sawblades Ø 530 mm
Nr 4 horizontal pneumatic clamps
USB flash drive
Automatic lubrication by means of nebulizer
Air filter
Air gun
Service spanners
Optionals
Vertical clamps kit (1 cylinder/head, tot. 2 cylinders)
Vertical clamps double kit (2 cylinders/head, tot. 4 cylinders)
Turning vertical clamps kit
Central pneumatic support
Right head infeed roller conveyor
Automatic reduced cut device c/w infeed roller conveyor
Over size cut device
Trim cut device
“V” notch device for PVC profiles
Micro-spray nebulizing device
Profile height electronic caliber
Pneumatic support for long bars
Ethernet connection plug
Bar code label printer
