Description
Technical Data

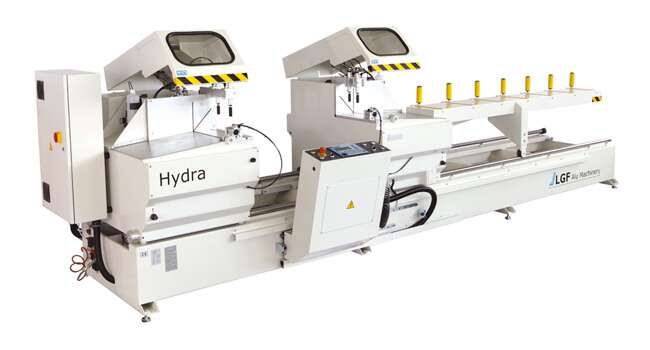

Machine equipped with electronic positioner c/w monochrome screen 120×40 mm and industrial integrated keyboard
Right head displacement by means of electronic positioner
Full protection of the sawblades by means of safety hoods with automatic closing
Sliding of the moving head by means of recirculating ball bearings on rectified and tempered guides
USB port to store/upload of cutting lists and programs
Variable length cutting procedure independently from the profile height
Pneumatic heads tilting at 90° / -45°
Possibility to mount sawblades with Ø 500 – 530 mm
2,2 Kw (3 HP) 3 phase motors – 2800 r.p.m.
Sawblade shaft Ø 30 mm
Cutting lengths 4000/5000 mm
Working pressure 7 bar
overall dimensions 555-655x160x144 cm
Weight 1800 – 1950 Kg
Standard Equipment
Nr. 2 TCT sawblades Ø 500 mm
Nr. 2 vertical pneumatic clamps
Nr. 2 horizontal pneumatic clamps
USB flash drive
Central pneumatic support
Right head in feed roller conveyor
Automatic lubrication by means of nebulizer
Air filter
Air gun
Service spanners
Optionals
Nr 2 additional vertical pneumatic clamps
Electronic positioner “POWER 1000″, c/w 10” color monitor and touch screen system
Over size cut device
Trim cut device
Slug cut device
Reduced cut device
Vee notch device for PVC profiles
Micro-spray nebulizer device
