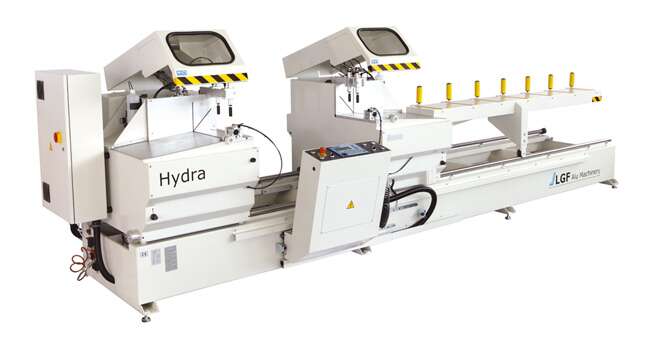

Description
Technical Data
Right head displacement by means of hand wheel
Reading of the cutting dimension on high precision metric scale
Sliding of the moving head by means of recirculating ball bearings on rectified and tempered guides
Variable length cutting procedure independently from the profile height
Full protection of the sawblades by means of safety hoods with automatic closing
Pneumatic heads tilting at 90° / -45°
USB port to store/upload of cutting lists and programs
Possibility to mount sawblades with Ø 500 – 530 mm
Sawblade shaft Ø 30 mm
2,2 Kw (3 HP) 3 phase motors – 2800 r.p.m.
Cutting lengths 4000/5000 mm
Working pressure 7 bar
Overall dimensions 555-655x160x144 cm
Weight 1800 – 1950 Kg
Standard Equipment
Nr. 2 TCT sawblades Ø 500 mm
Nr. 2 vertcial pneumatic clamps
Nr. 2 horizontal penumatic clamps
Pneumatic central support
Right head in feed roller conveyor
Automatic lubrication by means of nebulizer
Air filter
Air gun
Service spanners
Optionals
Reading of the cutting dimensions on digital display
Nr 2 additional vertical pneumatic clamps
Manual central support
Slug cut device
Semi- automatic reduced cut device
Vee notch device for PVC profiles
Micro-spray nebulizer device
