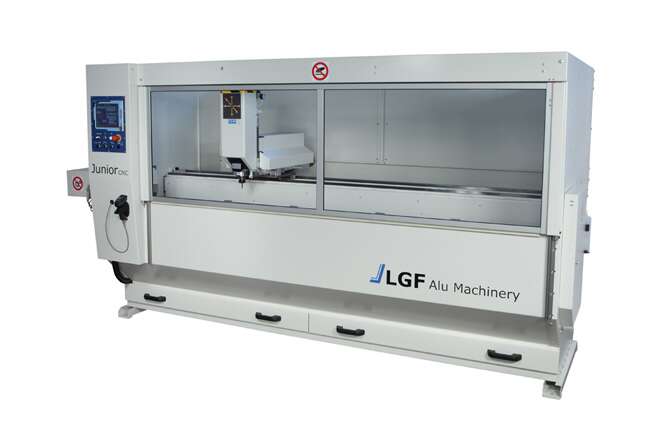

LGF Junior CNC

Description

Standard Equipment

• CNC programmer complete with colour touch screen system and LGF software
• USB port
• USB pen drive
• Safety devices; photocell / mat / fairing
• Nr. 4 pneumatic clamps with manuel displacement and software indication of correct positioning with scratch resistant plastic jaws
• Rotating bench at 90°/0°/-90° with manual displacement of intermediate degrees
• Variable spindle speed with potentionmetre or programming
• Variable axis speed with potentionmetre
• Three phase motor 1.5 KW (2HP) – 12000 rpm
• Automatic tool lubrication system
• Spindle collet ER 25 type with manual changing of the tool
• Profiles’ end stop (L)
• Chip collection drawers
• Air filter
• Air gun
• Service spanners

Optional Features

• Three phase motor 2.2 KW (3HP) – 12000rpm
• ISO 30 spindle type with fast manual releasing of the cone 3.6 KW (5HP) – 18000 rpm
• Automatic tool changer with 4 lodgings (100 allocations in the software)
• Safety perimeter fence
• Complete fairing
• Barcode reader
• 2D label reader
• ISO (G code) programming
• Long profiles side tunnel (only on machine with fairing)
• Extra profiles’ end stop on the right hand side
• Collet ER 32 type
• Collets with different diameters
