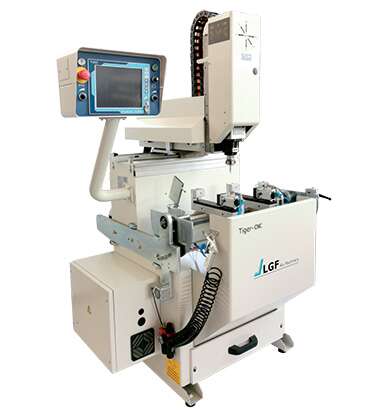

LGF TIGER – CNC

Description

Technical Data

• Particularly suitable for working on light alloys, PVC, tubular steel and stainless steel
• Working capacity:
0°: 470x180x140 mm
90°: 470x180x90 mm
-90°: 470x180x90 mm
• Tolerance +/- 0.2 mm
• Brushless axis motors
• Axis speed: X axis 80 m / min – Y axis 30 m / min – Z axis 30 m / min
• CNC programmer complete with color screen with touch screen and dedicated LGF software
• Ability to queue programs
• USB port input – USB stick
• Rotating bench 90 ° / 0 ° / -90 ° and intermediate manual degrees
• Variable spindle speed with potentiometer
• Variable axis speed with potentiometer
• Three-phase motor 1.5 KW (2 HP) – 12000 rpm
• Automatic tool spraying
• ER 25 Ø spindle clamp with manual tool change
• No. 2 pneumatic vices with manual translation
• Working pressure 7 bar

Standard Equipment

• Profile end stop (L)
• Nr. 1 tool Ø 8 mm
• Chip-holder drawer
• Air filter
• Air gun
• Software with indication of the correct positioning of the clamps on the bench
• Clamps with scratch-resistant plastic jaws.
• Service keys

Optional Features

• Quick-release chuck type ISO30 3.6 KW (5HP) – 18000 g / m
• Three-phase motor 2.2 KW (3HP) – 12000 g / m
• Barcode reader
• 2D label reader
• ER32 type clamp
• Collet of different diameter
• Additional vice
