Masterwood Nesting K Series

POA

Categories: ,

Description

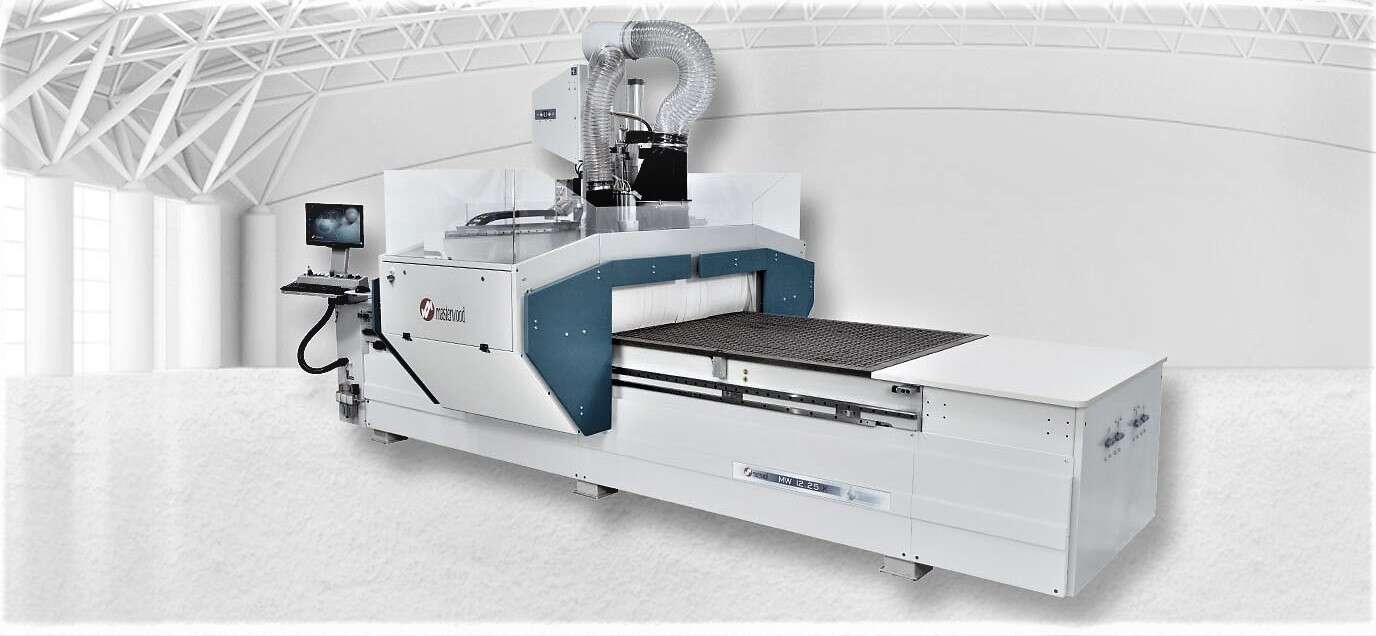

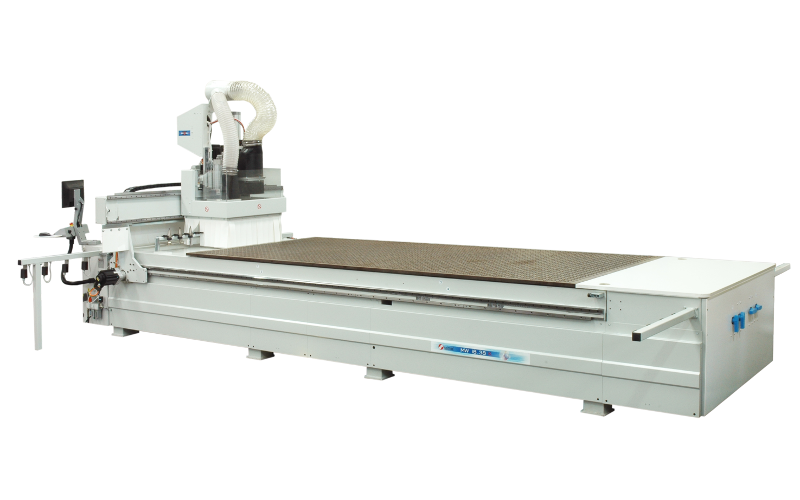

The Nesting K series consists of 3-axis machining centers for the “nesting” panel.

All in one in many ways;

  • ALL-IN-ONE because Nesting K concentrates in itself many processes: cutting, drilling and milling.
  • ALL-IN-ONE because Nesting K allows starting from large panels and, thanks to special optimization software, obtain the largest number of pieces, minimizing waste.
  • Comes standard with push off bar to increase productivity.
  • Standard 10 vertical spindle boring head
  • Twin drive rack and pinion on X axis
  • Becker vacuum pumps
DESCRIPTION MW 12.25K MW 15.38K MW 18.38K MW 21.38K Unit of measurement
Working Area X-Y-Z 2500-1250-145 3800-1550-145 3800-1550-145 3800-1550-145 mm
Boring head – total spindles 5 (std) – 10 (opt.) 5 (std) – 10 (opt.) 5 (std) – 10 (opt.) 5 (std) – 10 (opt.)
Electrospinde – max power 9 – ISO 30 9 – ISO 30 9 – ISO 30 9 – ISO 30 kW
Tools magazine- max tools n. 8 10 12 14
Max. tool diam. 120 120 120 120 mm
Vacuum pump – max. capacity 2 x 300 (opt.) 2 x 300 (opt.) 2 x 300 (opt.) 2 x 300 (opt.) m3/h
