Description

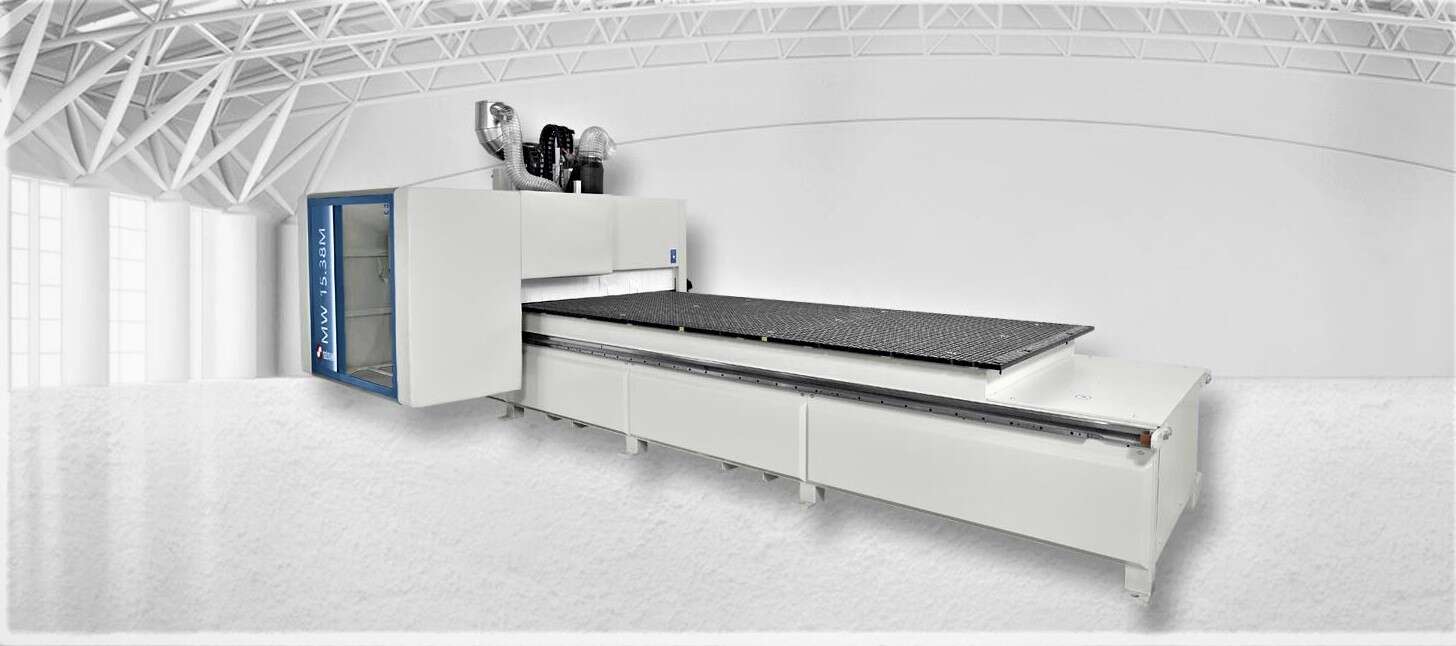

The Nesting M series consists of 3/4-axis machining centers for “nesting” operations, best suited to be part of highly automated production lines.
Available (optional) automatic vacuum subdivision on the working area in order to optimize the work-piece holding.
Many sizes are available, from 2500 x 1200 to 2100 x 6500.
It can be equipped with labeling device, automatic loading and unloading systems that makes it a work cell with very high productivity for furniture and all kind of panel machining!
| DESCRIPTION | MW 12.25M | MW 15.38M | MW 18.38M | MW 21.31M | MW 21.42M | MW 21.75M |
|---|---|---|---|---|---|---|
| Working Area X-Y-Z (mm) | 2500-1300-200 | 3800-1595-200 | 3800-1595-200 | 3100-2195-200 | 4200-2195-200 | 7500-2195-200 |
| Boring head – total spindles | 10 – 19 | 10 – 19 | 10 – 19 | 10 – 19 | 10 – 19 | 10 – 19 |
| Electrospinde – max power (kW) | 12 (14 opt.) – HSK 63F | 12 (14 opt.) – HSK 63F | 12 (14 opt.) – HSK 63F | 12 (14 opt.) – HSK 63F | 12 (14 opt.) – HSK 63F | 12 (14 opt.) – HSK 63F |
| Tools magazine- max tools n. | 16 | 16 | 16 | 16 | 16 | 16 |
| Max. tool diam. (mm) | 160 | 160 | 160 | 160 | 160 | 160 |
| Vacuum pump – max. suction capacity (m3/h) | 2 x 360 (opt.) | 2 x 360 (opt.) | 2 x 360 (opt.) | 2 x 360 (opt.) | 2 x 360 (opt.) | 2 x 360 (opt.) |
