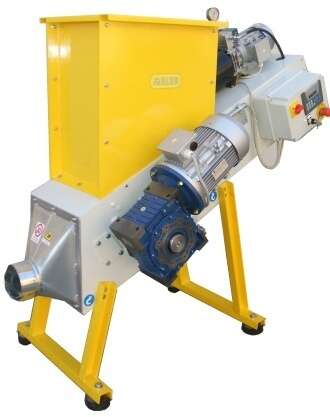

Body machine in Fe 510 (UNI 7746) with high thickness, welded and with guaranteed stiffness by tensioning elements |
|
|
| * |
Rotor in steel Fe 510 (UNI 7746) with high resistance |
Ø |
220 |
| * |
Anti-stress device to absorb the shocks to protect the gearbox and the rotor |
|
|
| * |
Blades in special steel reversible and easily replaceable |
N° – mm |
16 – 30×30 |
| * |
Blades supports with special rotor seats |
|
|
| * |
Counter blades in steel C45 hardened and adjustable for a better cutting accuracy |
|
|
| * |
Total installed power |
Kw |
5,5 – 7,5 |
| * |
Hydraulic unit to operate the hydraulic pressure that pushes horizontally the material to be treated in the rotor |
Kw |
0,55 |
| * |
Electrical panel complete with PLC and software dedicated to the control of the operating parameters; all the components are of high quality, leading brand and easily available |
|
|
| * |
Block and automatic reversal of the rotor from the PLC in case of anomalies in the control parameters |
|
|
| * |
Feeding mouth |
mm |
400 x 400 x 700 |
| * |
Size of the machine |
mm |
850 x 1700 x 1450h |
| * |
Wood/hour production with grid Ø 20 |
Kg |
60-130 |
| * |
Weight |
Kg |
450 |
