Description

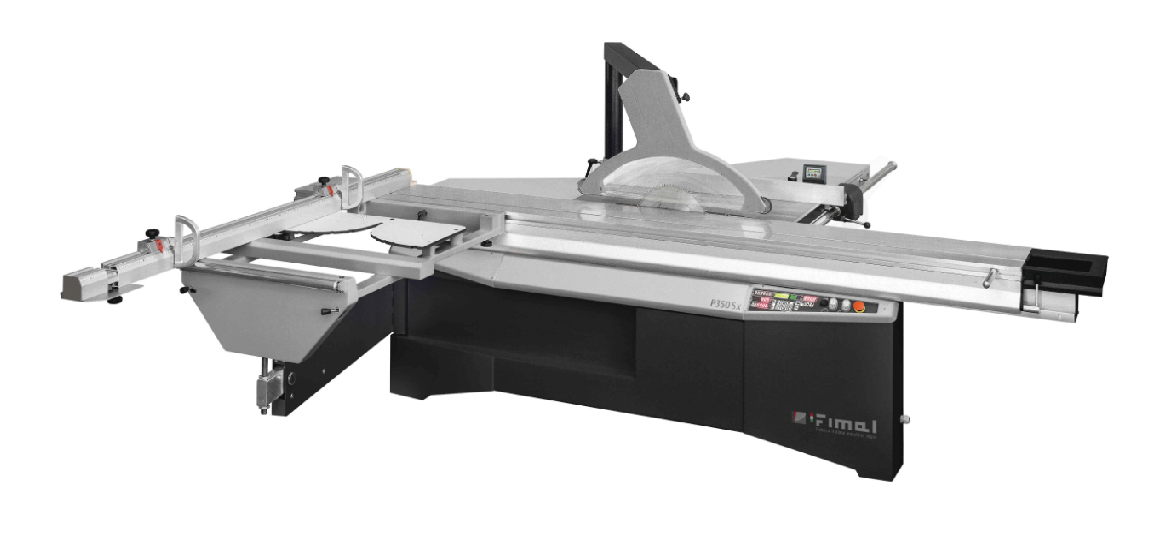

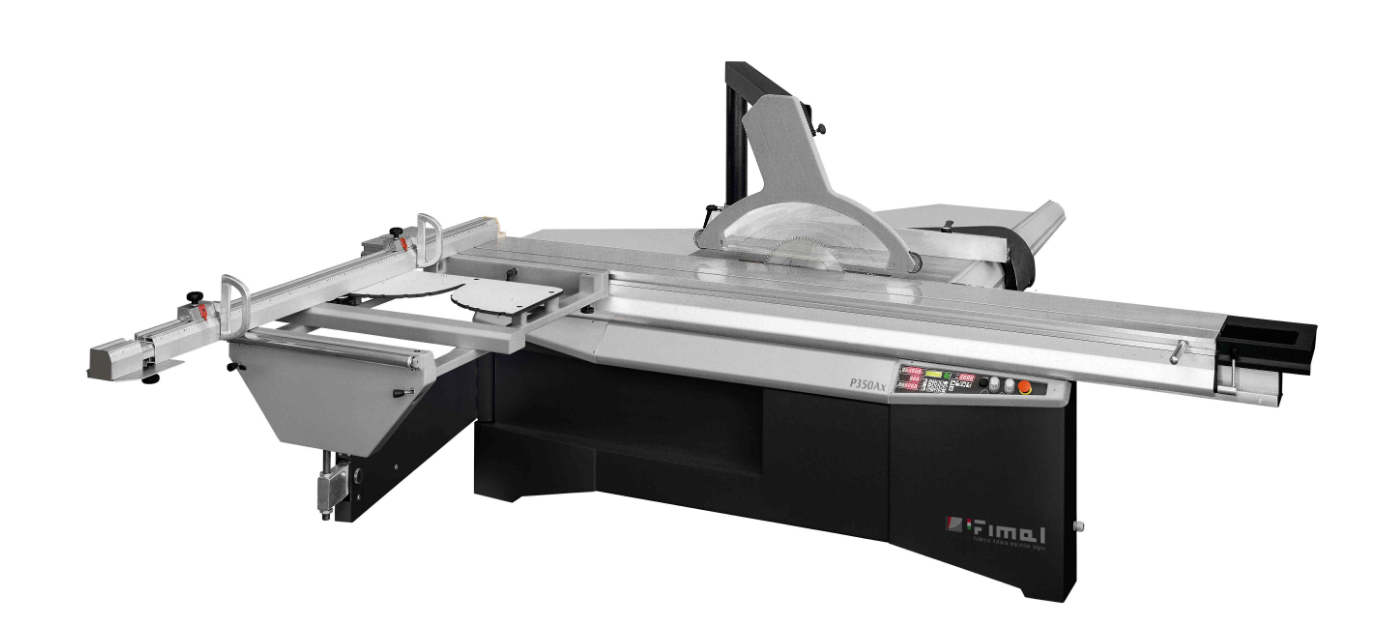

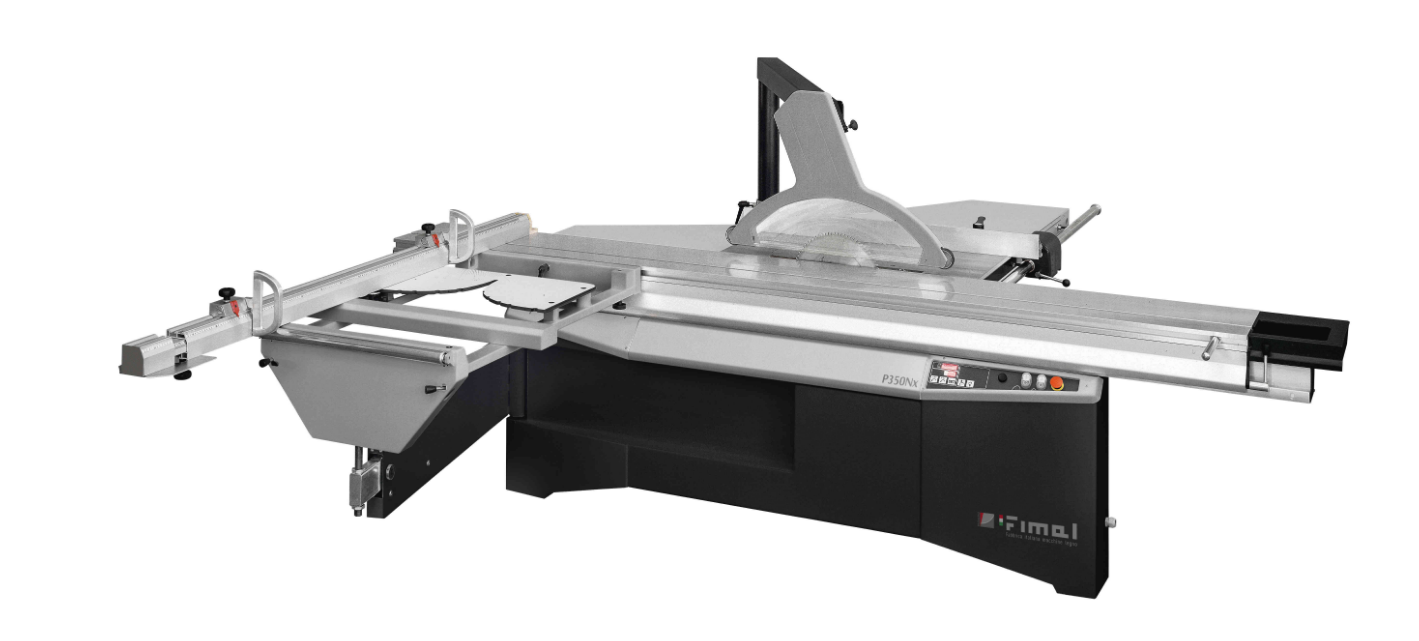

The carriage’s sliding system uses bearings that roll along grounded prismatic tracks, providing smoothness and straight cuts. The tracks are fixed to the carriage and sub-carriage by mechanical pressure, so the glue doesn’t lose its adhesion over time.
The extension-table fence can be quickly set from +45° to -45° with fixed references at each 5° and at 22°30. The saw guide, slides along a bar on four wheels. The guides can easily be excluded from the work table if necessary for sawing large panels.
Technical Data – Saw:
Fixed table dimensions/height (mm): 1000 x 560 / 860
Carriage dimensions/stroke (mm): 3200×350 / 3350
Cutting width (mm): 1300
Max. diameter saw blade/hole (mm): 350/30
Cutting height at 90°-45° (mm): 118 – 81
Spindle speed saw Ø 30mm (g/min): 3000/4600
Motor power (kW): 4
Upper and lower extraction hood Ø (mm): 100/80
Scoring Unit:
Ø blade – Ø hole – cutting height (mm): 120 – 20 – 6
Shaft speed scorer (g/min): 8000
Motor power scorer (kW): 0.55
Sound emission according to ISO 7960 standard-cutting with saw (LAeq(Db)): 81.2-83.9
Dust emission according to DIN 33893 standards-cutting with saw (mg/m3): 0.87
Net weight (Kg): 800
