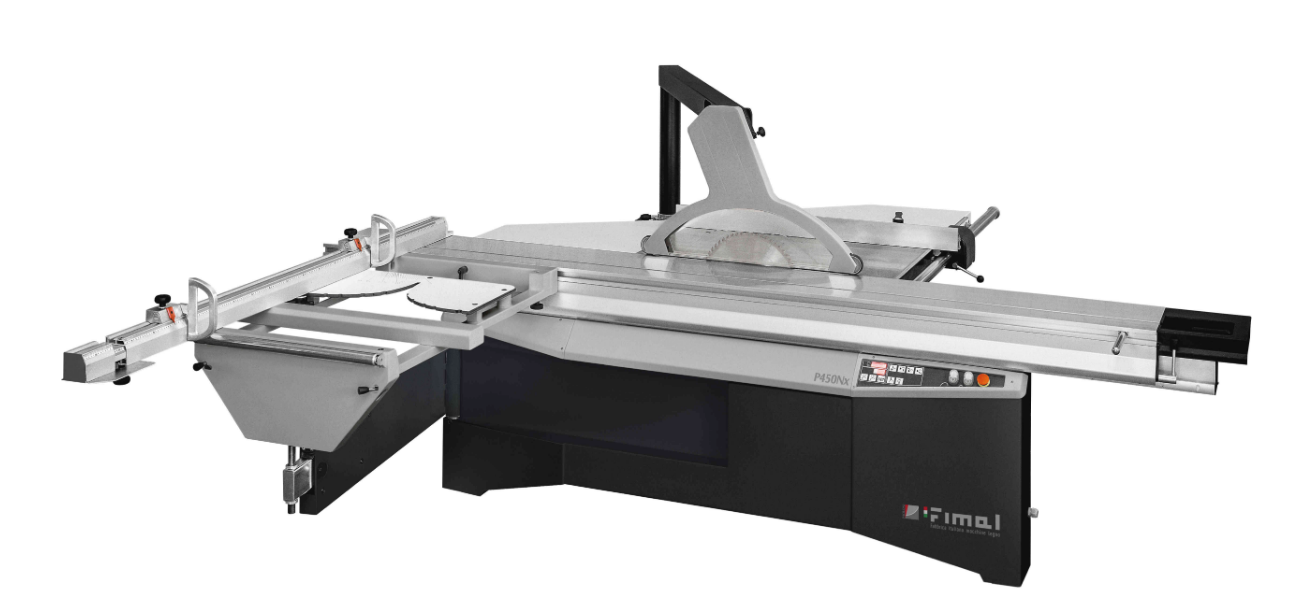

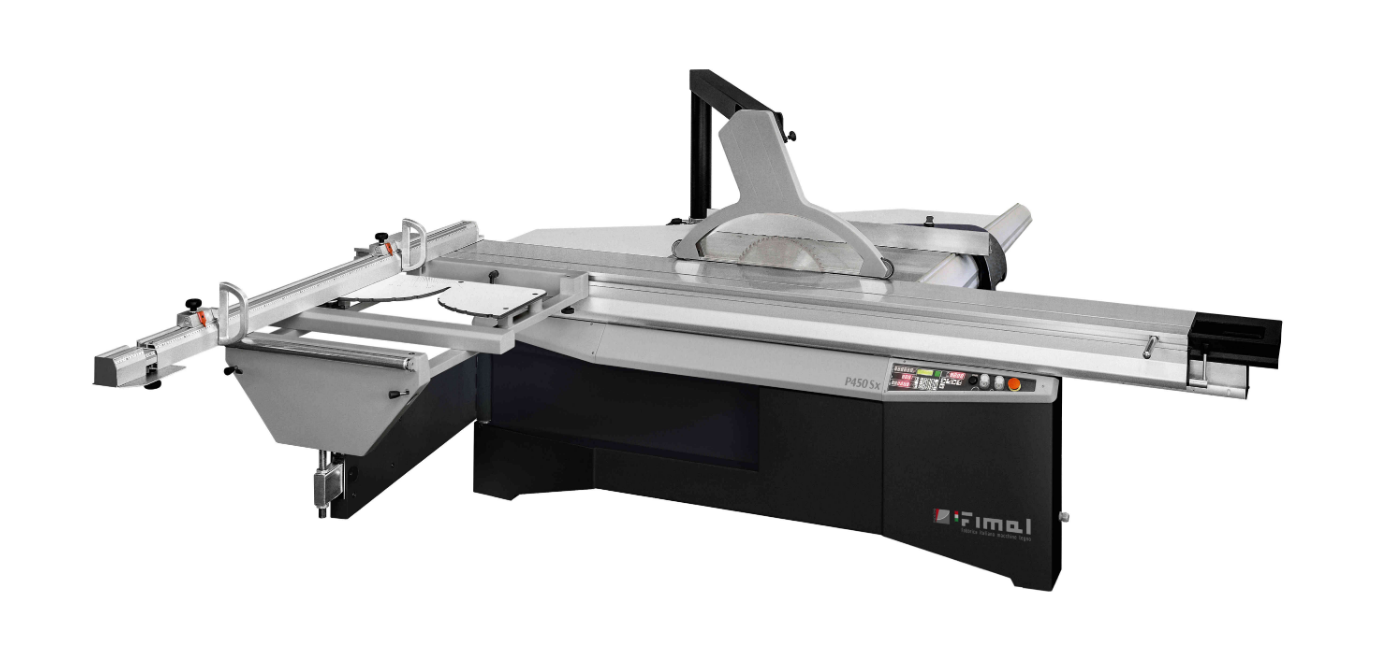

Description
Saw unit with long shaft
The saw blade unit contains a long shaft, which slides vertically with prismatic guides. Stability and a lack of vibration are ensured by the considerable distance between the bearings and the long shaft.
Excellent quality and cutting finish
The sliding system adopted on the new carriage, with large diameter bearings that roll along tempered and ground prismatic tracks, provides excellent smoothness and ± 0.05 mm straight cutting along the whole carriage stroke.
Speed change
The speed change is very quick and easy because it can be simply executed through an opening above the work table.
Technical Data – Saw
Fixed table dimensions/height (mm): 1030×680/870
Carriage dimensions/stroke (mm): 3200×350/3350
Cutting width (mm): 1300
Max. diam. saw blade/hole (mm): 450/30
Cutting height at 90°-45° (mm): 155-110
Spindle speed saw Ø 30mm (g/min): 3000/3600/4200
Motor power (Kw): 5.5
Upper and lower extraction hood (mm): 120/80
Standard Scoring Saw with Electrical Horizontal Adjustment
Ø blade-Ø hole-cutting height (mm): 125-20-8
Shaft speed scorer (g/min): 7600
Motor power scorer (Kw): 0.55
Sound emission according to ISO 7960 standard-cutting with saw (LAeq(Db)): 84.4-86.3
Dust emission according to DIN 33893 standards- cutting with saw (mg/m3): 0.87
Net weight (Kg): 900
