Description

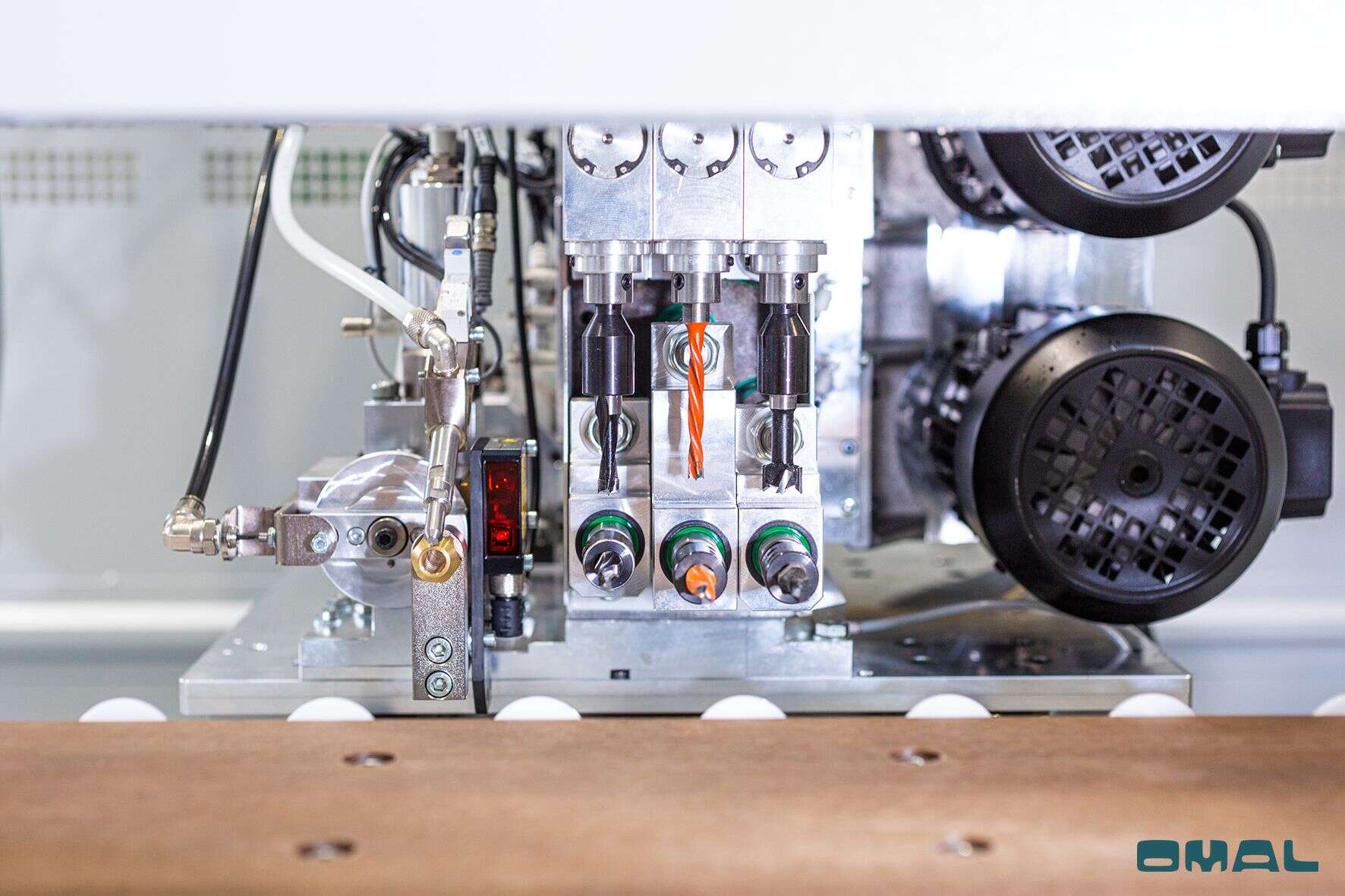

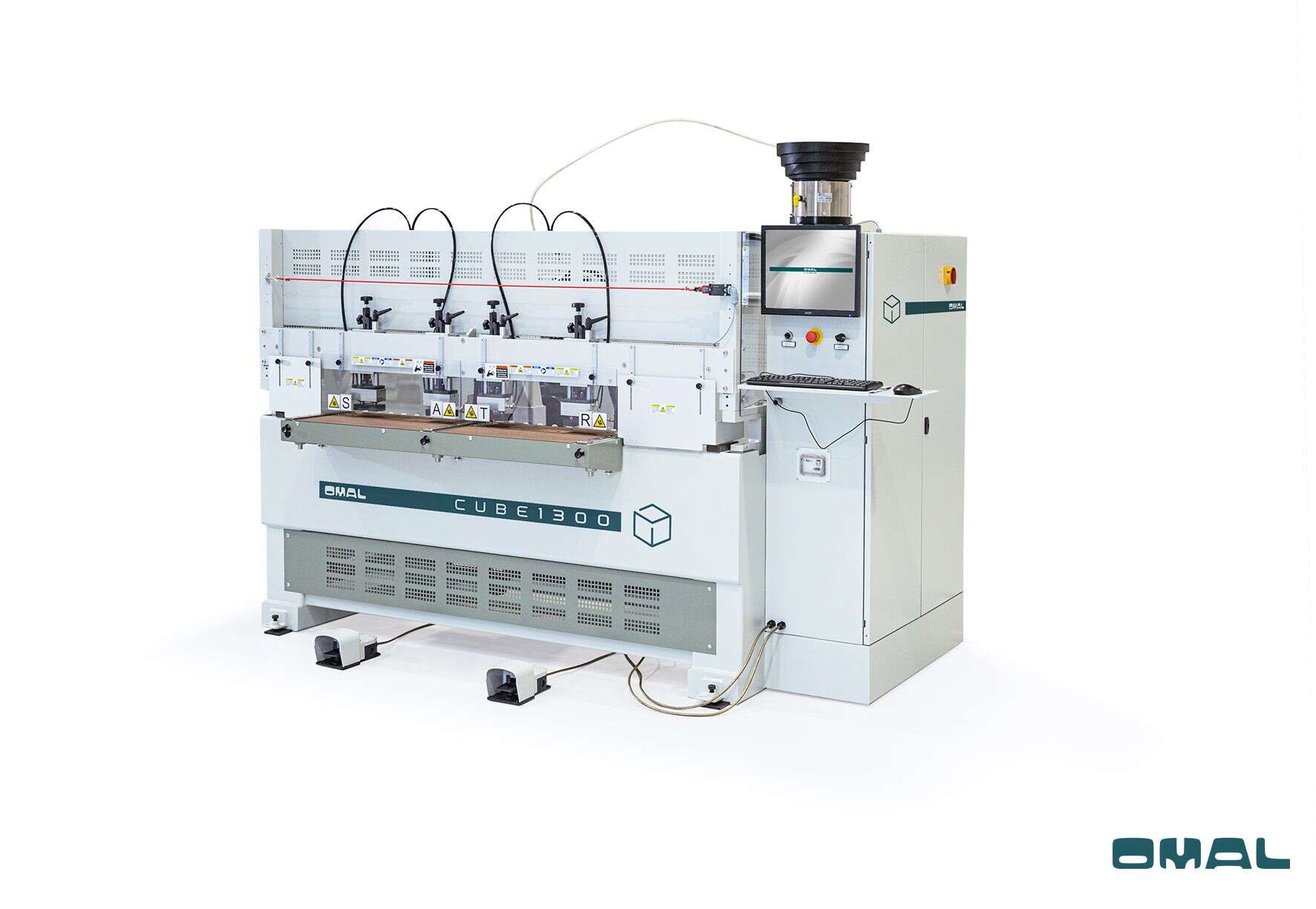

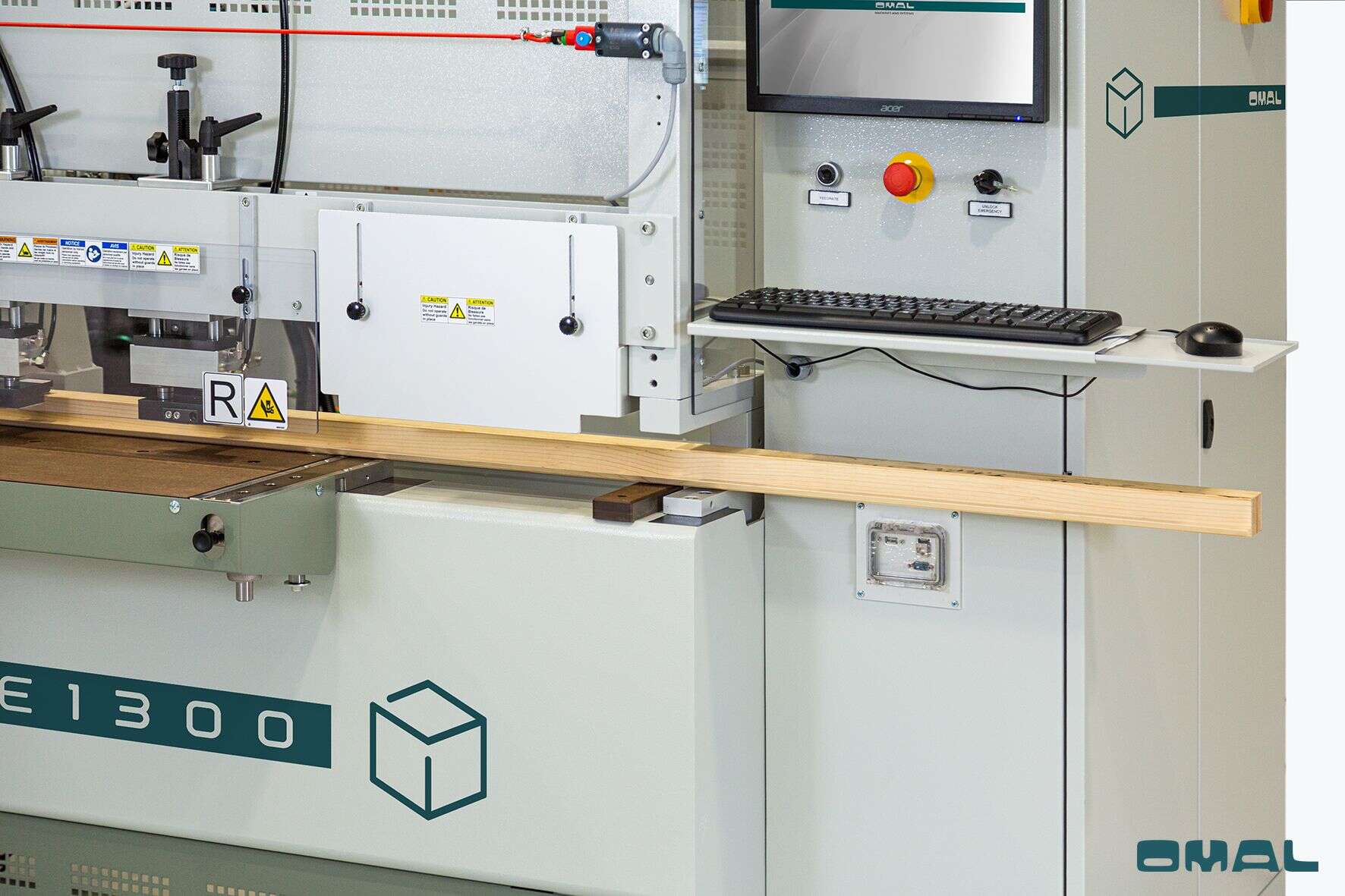

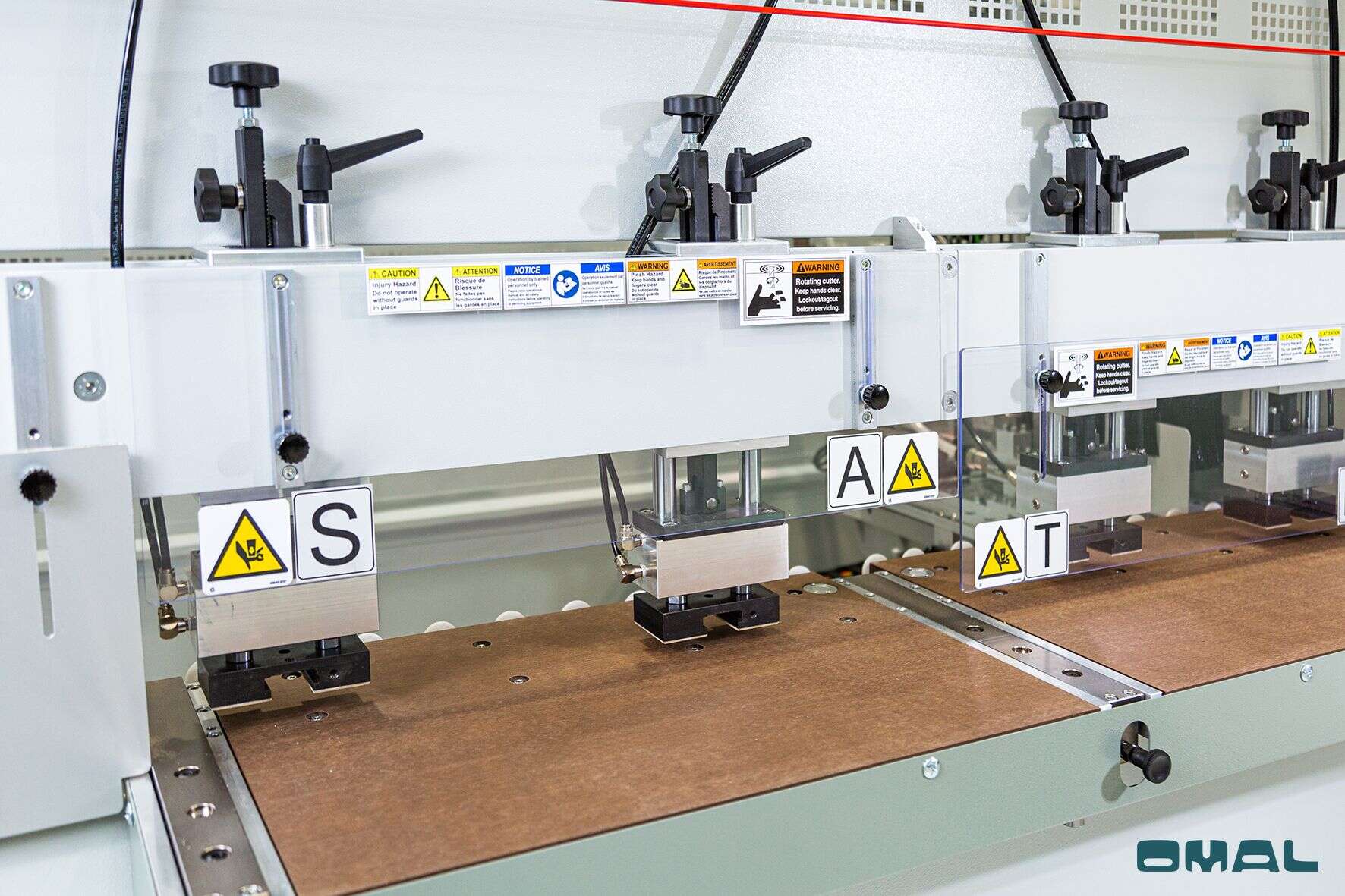

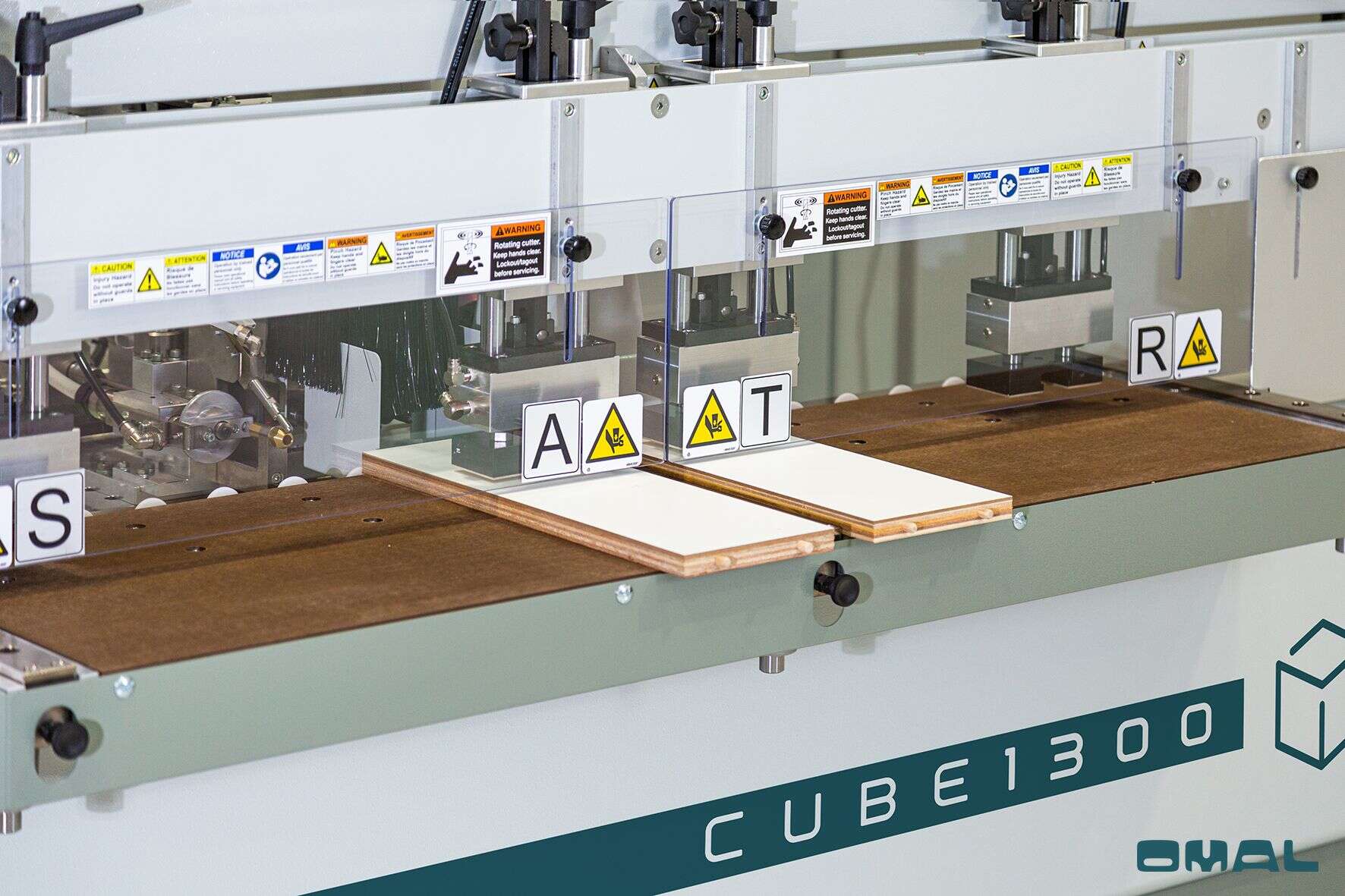

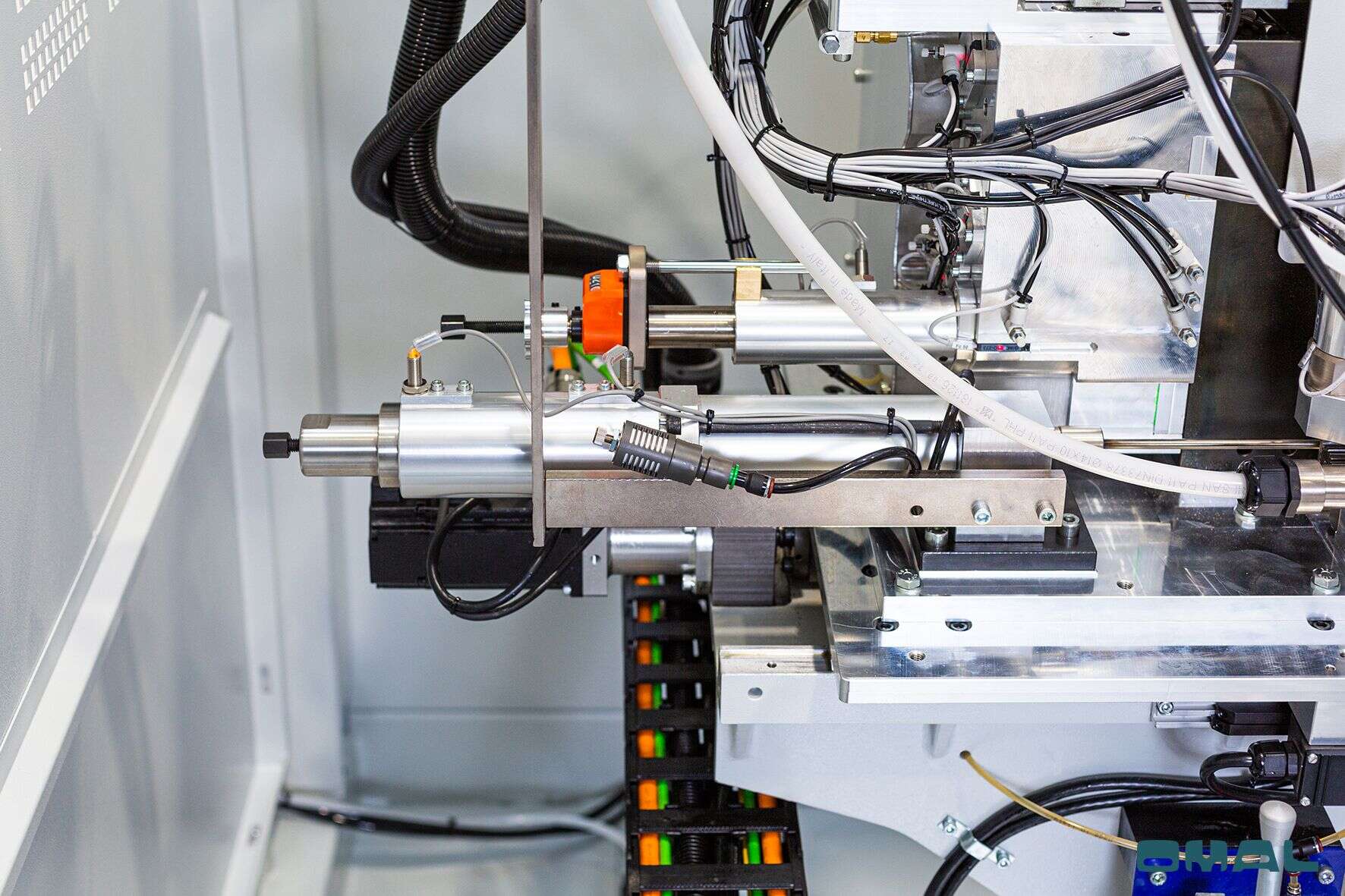

The INSERT CUBE is a 3 AXIS Numerical Controlled machine for vertical and horizontal drilling, gluing and dowel insertion. The machine offers a Full Pc interface with 1300 or 2500 mm useful working field divided in zones for pendulum processing, four references stops are standard. Insert Cube is a complete solution for assembly of furniture and cabinets. The standard machine includes 3 Vertical and 3 Horizontal drilling units, glue and dowel insertion beside several different features which complete the configuration and offer the highest level of flexibility and efficiency.
Technical Data:
- Panel length 20 – 1300 / 2500 mm
- Panel width 40 – ∞
- Panel thickness 10-40 mm
- Installed power – 13 Kw
- Compressed air – min 7
- Dust extraction hood –
- Total weight – 1600 / 2200 Kg
Advantages:
- Increased efficiency with high speed of working cycle and flexibility;
- CNC drilling and dowel insertion with perfect accuracy eliminating any possible mistake;
- easiness of assembling;
- ideal solution for just in time production or large batches thanks to the minimum cycle time;
- zero setup time and possibility to work with different boring pattern in different fields;
- it is possible to concentrate different edge machining operations on the same single side machine.
